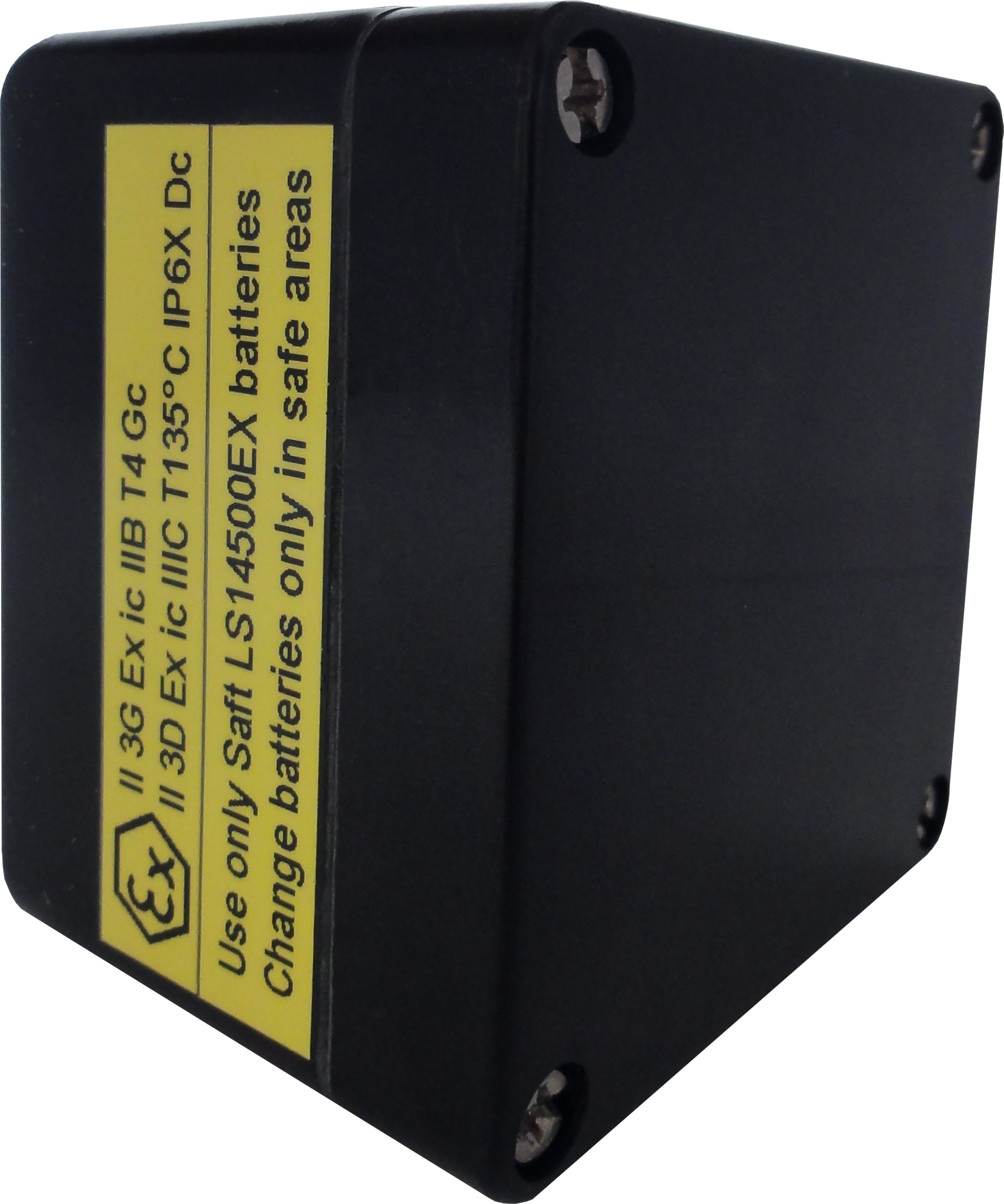

BEACON EX - ATEX


BEACON EX - ATEX



Beacon EX is designed for explosion-prone areas. Helpers have to reach the lone worker quickly if he has had an accident. For this, they need to know where the accident has occurred, otherwise they lose precious time in looking for him in the whole building. Beacon EX provides this precise location information.



It is installed in a fixed location for this purpose. This location is stored with the beacon identifier in an alarm management software such as the Control Centre. The beacon sends its identifier every four seconds. This identifier is received by system-conforming personal emergency-call mobiles for the EX area such as GSM S EX PLUS. In an emergency, this identifier is sent from the emergency call device to the alarm server. This helps to determine the location of the person who has had an accident and the rescue team can be led to him accurately.



ATEX classification

  • II 3G Ex ic IIB T4 Gc (-20°C <= Ta <= +40°C)
  • II 3D Ex ic IIIB T135°C IP6X Dc



Characteristics

Wireless assembly

Most simple operation and commissioning

Effiziente Hardware

Indoor-Ortung

Outdoor-Ortung

Operating duration: 2 years typically

Can be adjusted individually to your work situation

Transmission frequency every 4 seconds

Tested safety as per DGUV rule 112-139

(formerly BGR 139)



Area of application:

Indoor localisation



When you install the battery-operated beacon in your premises, you can determine the position of an employee within an accuracy of one metre in the event of an alarm. When an emergency call is made, the localisation data is sent to the alarm server or directly to the helper via the personal emergency-call device.



Outdoor localisation



Along with internal localisation options, you can also equip the entire worksite with the locator beacons and protect the lone worker all over the whole site.


Indoor localisation

Outdoor localisation
